Automatic canned food canning production line for Canned Food Canned Golden Sweet Kernel Corn
Bubble(dry bean 1T/H)
With cooling 5min (85ºC-90ºC)
moving to tank of filling machine
use measuring working way
Sealing Can(7113 can)

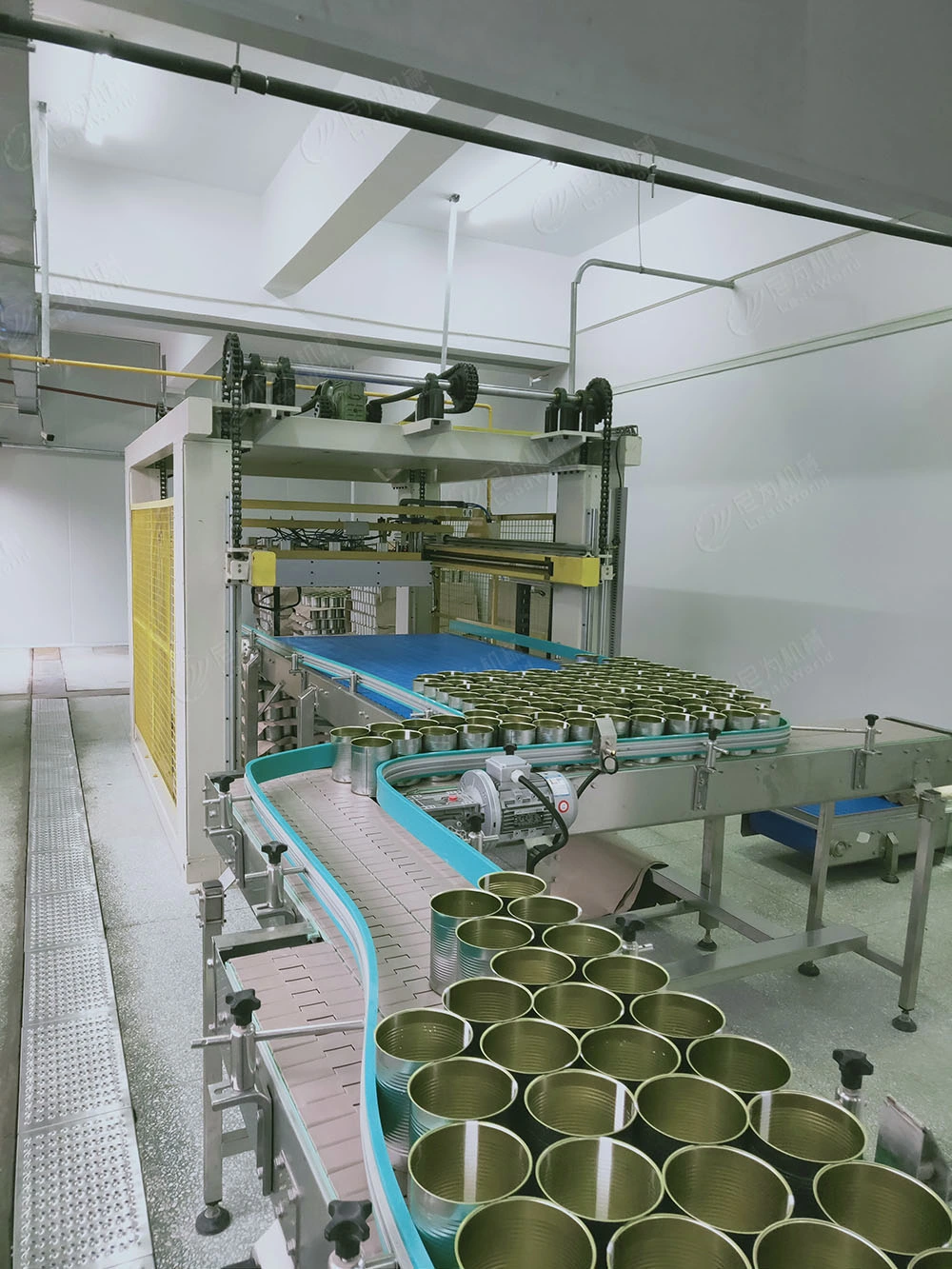

empty cans depalletizer system
loading and unloading for sterilization system
our control system
some descriptions of our machine
This machine series are suitable for all kinds of vegetables,fruits, fungi's pre-cooking and cooling of the product.Precook temperature and speed can be set according to the technical requirement.
The machine uses SUS304 stainless steel chain plate, mesh belt,mesh belt with high intensity, small scale, difficult deformation, easy maintenance, etc., the
whole machine balanced running, low noise, greatly improving the work efficiency
This machine is heating mode of electric heating.The machine transmission system adopts gear motor speed regulation which
make the conveyor belt speed adjustable.
The machine adopts disassembly design.Quantity of working station can be customized according to clients'actual demand.
The whole machine adopt SUS304 stainless steel.
When produced according to the actual size.
1.2 Roller:Material SUS304,diameter is based one the actual
load,cooperate with the plus or minus tolerance.
1.3 Riding wheel:Material Nylon processing molding,diameter is based one the actual load,cooperate with the plus or minus tolerance.
1.4 Bun foot:Nylon injection molding,Cooperate with stainless steel adjusting screw M16.
1.5 Guardrail part adopts big Caluminum trackCooperate with wear-resisting sheath;
1.6 Connecting plate:plate wicknessδ3.0mm Material:Stainless steel bending forming;
1.7 Connection between mesh belt:Nylon board or ball, according to the customer's product selection.
1.8 Accessories:Mounted Bearings,kinds of SUS304 screws,etc.
Conveying carrier part
2.1 Module length:According to the effective length*widthness (mm)(When produced according to the actual size);
2.2 Module belt varieties:Flat grid, grid, according to the actual situation to choose material.
3.1 Gear motor:Worm gear and worm gear motor,
Protection class IP55,Power P=1.5KW/0.75KW;
3.2 Speed:V=0-25 Meter/MIN;
3.3 Speed choice: Denmark Danfoss inverter frequency control motor speed.
4.1 Electric cabinet material:1.5mm SUS304 Stainless steel plate bending welding forming.
4.2 Electronic components:disconnector,AC contactor, button switch,etc. Brand: Schneider,France.
Q1:Are you manufacturer or trading company?
We are manufacture verified by ALIBABA and we have our own design team.
Q2:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient.
Q3:How can you guarantee quality?
1.We have completed working system and procedures and we follow them
2.Our different worker is responsible for different working process, their work
is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,
such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
5.Our machines are certified by CE,SGS,ISO.
Q4:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technical
drawing, but also can design new machine according to your requirements.
Q5:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your
worker if needed.
