20#/1020/S20C Cold Drawn Round Steel for Car headrest rod steel
The steel belongs to high quality low carbon carbon steel, cold extruded, carburized and hardened steel. The steel has low strength, good toughness, plasticity and weldability. The tensile strength is 253-500MPa, and the elongation is ≥24%.
Uses: suitable for the manufacture of small and medium carburizing and carbonitriding parts that are not important for the construction of automobiles, tractors and general machinery manufacturing, such as handbrake shoes, lever shafts, gearbox speed forks, transmission passive gears and Tractor camshafts, suspension equalizer shafts, equalizer inner and outer bushings, etc.; used to manufacture various mechanical parts that are not stressed but require high toughness under hot-rolled or normalized conditions; in heavy and medium-sized machinery manufacturing In, such as forged or pressed tie rods, shackles, levers, sleeves, clamps, etc. In the steam turbine and boiler manufacturing industry, it is mostly used for pipes, flanges, headers and various fasteners working in non-corrosive media with a pressure of ≤6N/square and a temperature of ≤450ºC; used to make crosses on railways, locomotives and vehicles Castings such as heads and pistons.
JIS G4051 Grade S20C
|Density||7.8 - 7.9||g/cm³|
|Elastic modulus||200.0 - 215.0||GPa|
|Shear modulus||75.0 - 80.0||GPa|
|Coefficient of thermal expansion||1.32e-05 - 1.38e-05||1/K|
|Max service temperature||500.0||°C|
|Melting point||1480.0 - 1526.0||°C|
|Specific heat capacity||465.0 - 483.0||J/(kg·K)|
|Thermal conductivity||36.0 - 54.0||W/(m·K)|
|Electrical resistivity||1.43e-07 - 1.74e-07||Ω·m|
|Carbon||0.18 - 0.23||%|
|Iron||98.7549 - 99.3699||%|
|Manganese||0.3 - 0.6||%|
|Silicon||0.15 - 0.35||%|
Equivalent Materials to GB/JB is 20Taiwan CNS S20C
German DIN 1.0402,German DIN CK22/C22
British BS IC22
French AFNOR CC20, France NF C22
Italy UNI C20/C21
Belgium NBN C25-1
Sweden SS 1450
Spain UNE F.112
American AISI/SAE 1020
Japan JIS S20C/S22C
Cold drawn steel types, shapes and sizes we can offer
besides the below shapes and sizes,we can also manufacture it based on customer's requests and customize different shapes and sizes.
|Steel Round Bar||5mm to 63.5mm||Cold Drawn|
|Steel flat Bar||63.5mm-120mm||smooth-turned and polished.|
|Cold drawn steel square bar||5*5mm to120*120mm||Cold Drawn|
|Cold drawn steel hex bar||5mm to120mm||Cold Drawn|
|Cold drawn steel hexagonal bar||5mm to 120mm|
(side to side)
|Tolerance||h9 h10 h11 or as required|
|Type of steel||GB||ASTM(SAE)||JIS|
Low alloy steel
|Free cutting steel||Y12,Y12Pb,Y15,|
|Round steel||Square steel||Flat steel|
|hexagonal steel||Irregular steel||Steel pipe|
Founded in 2012, Junxiong Metal is located in Jiulong Metallurgical Industrial Park, an important upgrade project base of Jiangsu Sha Gang Group, one of the world's top 300 key projects in the "Twelfth Five-Year Plan" period of Jiangsu Province.Relying on the unique manufacturing, consumption, economic and trade, investment, transportation and industrial policies of the Yangtze River Delta and strong government support, Junxiong stands on the shoulders of the giant Sha Gang Group to create value for you.
The main production and processing of cold-drawn round steel, square steel, flat steel, hexagonal steel, special-shaped steel, tooth steel, easy-to-chip steel, special-shaped drawn pipe steel, cold forging steel spheroidization, austenitic martensitic stainless steel, according to customers Mechanical properties, appearance and appearance require professional customized production. Products are widely used in standard parts, hardware tools, textile machinery, motorcycles, loaders, forklift parts, sports equipment, furniture and iron crafts, auto parts and other industries. Some products are indirectly exported to foreign countries, creating value for customers.

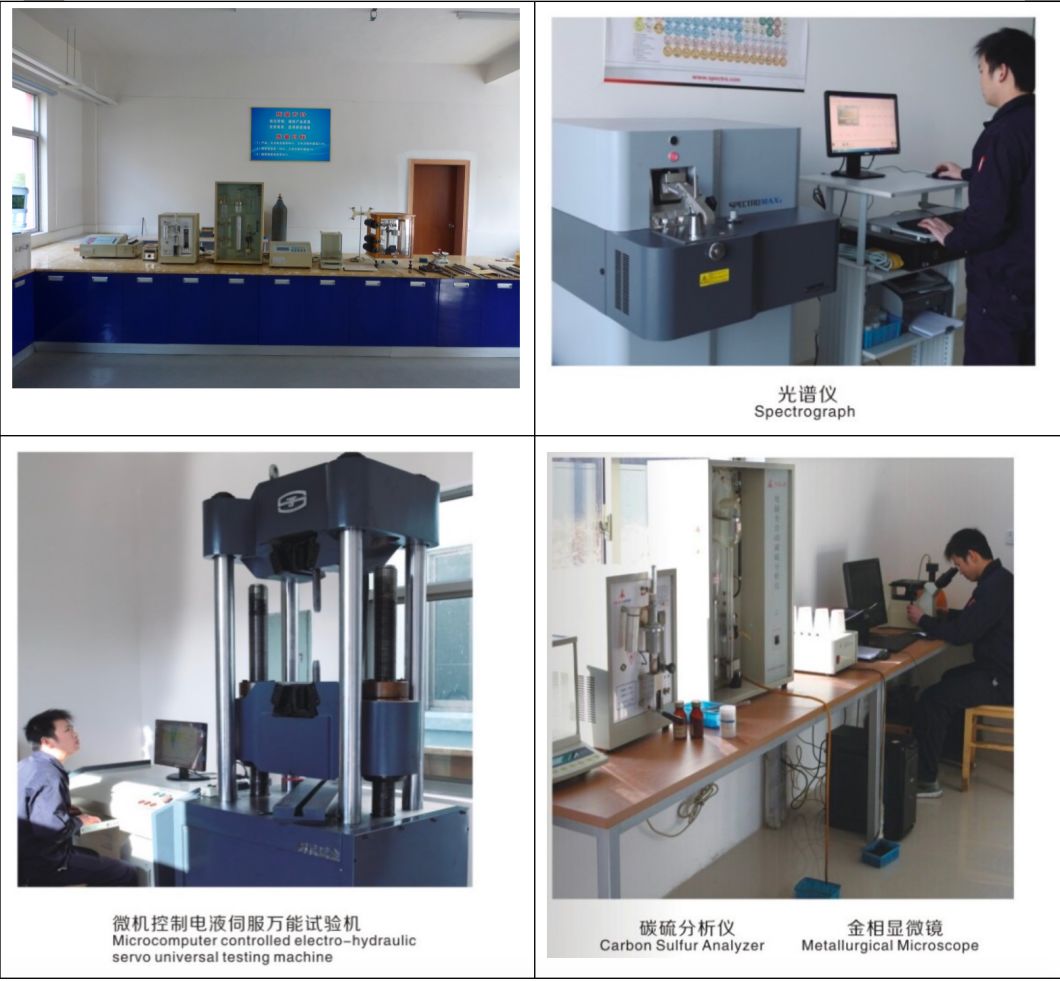

Lab Inspection Equipment
We have professional equipment and technical engineers for your service, according to your requirements (material, shape, mechanical properties) customized production.Our company has automatic production line to produce round steel Good straightness, after chamfer, it can be machined by the longitudinal cutting machine Customization (length) Customization (heat treatment hardness) Customization (Grinding machine polishing)
Finished Products Warehouse and Package
Q: Are you trading company or manufacturer?
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 30 ~40days if the goods are not in stock, it is according to quantity. The more the quantity is, the shorter the delivery will be.
Q: Do you provide samples? Is it free or extra?
A: Yes, we The inventory can be provided free of charge, but the freight will need to be borne by you
Q: What is your terms of payment?
A: T/T or L/C according to real order.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
If you have another question, pls feel free to contact us as below
